What is SIL 4 in Railway Signaling?
Introduction
SIL 4 (Safety Integrity Level 4) is the highest international standard for functional safety in railway signaling systems, defined under IEC 61508 and CENELEC EN 50126/50128/50129. A system certified to SIL 4 must demonstrate a probability of dangerous failure below 10⁻⁸ per hour, ensuring near-zero risk in mission-critical rail applications.
SIL 4 systems are vital for Automatic Train Protection (ATP), collision avoidance, and fail-safe train operations.
KAVACH is the Automatic Train Protection (ATP) system developed under Make in India by Indian Railways. It is a SIL 4-compliant, microprocessor-based safety solution aimed at preventing train collisions, overspeeding, and signal passing at danger (SPAD).
With KAVACH, India joins the global league of nations deploying indigenously developed SIL 4 ATP systems, delivering safety, affordability, and scalability across the vast Indian Rail network.
- Prevent head-on, rear-end, and SPAD collisions
- Enforce permanent and temporary speed restrictions
- Automatically apply brakes in unsafe conditions
- Support loco-to-loco and loco-to-station communication
- Operate reliably in diverse Indian terrains and climatess
| Subsystem | Description | ||||||

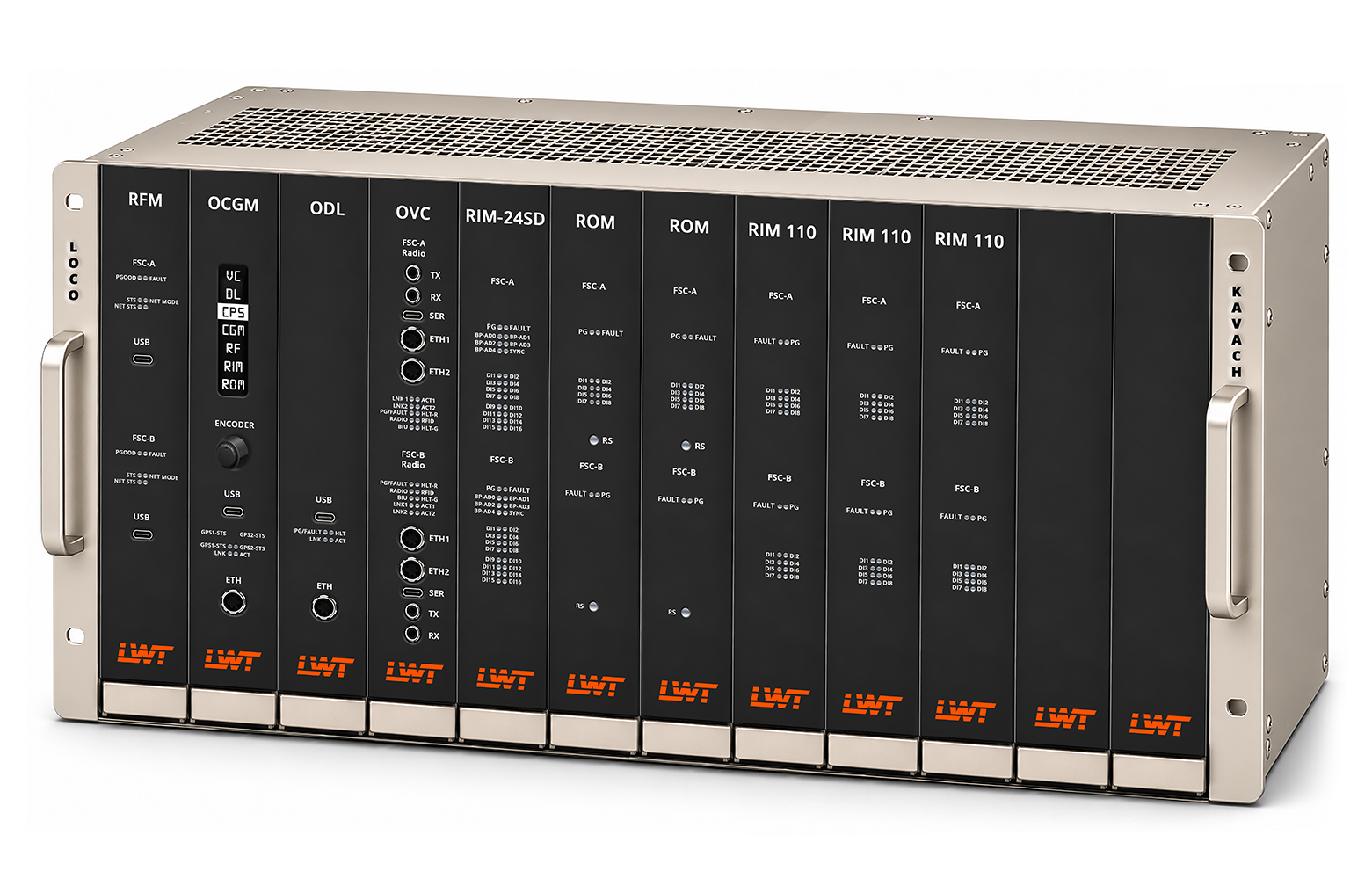

| Onboard Equipment (OBE) | Installed in locomotives to receive data from trackside systems and intervene in train operations | ||||||

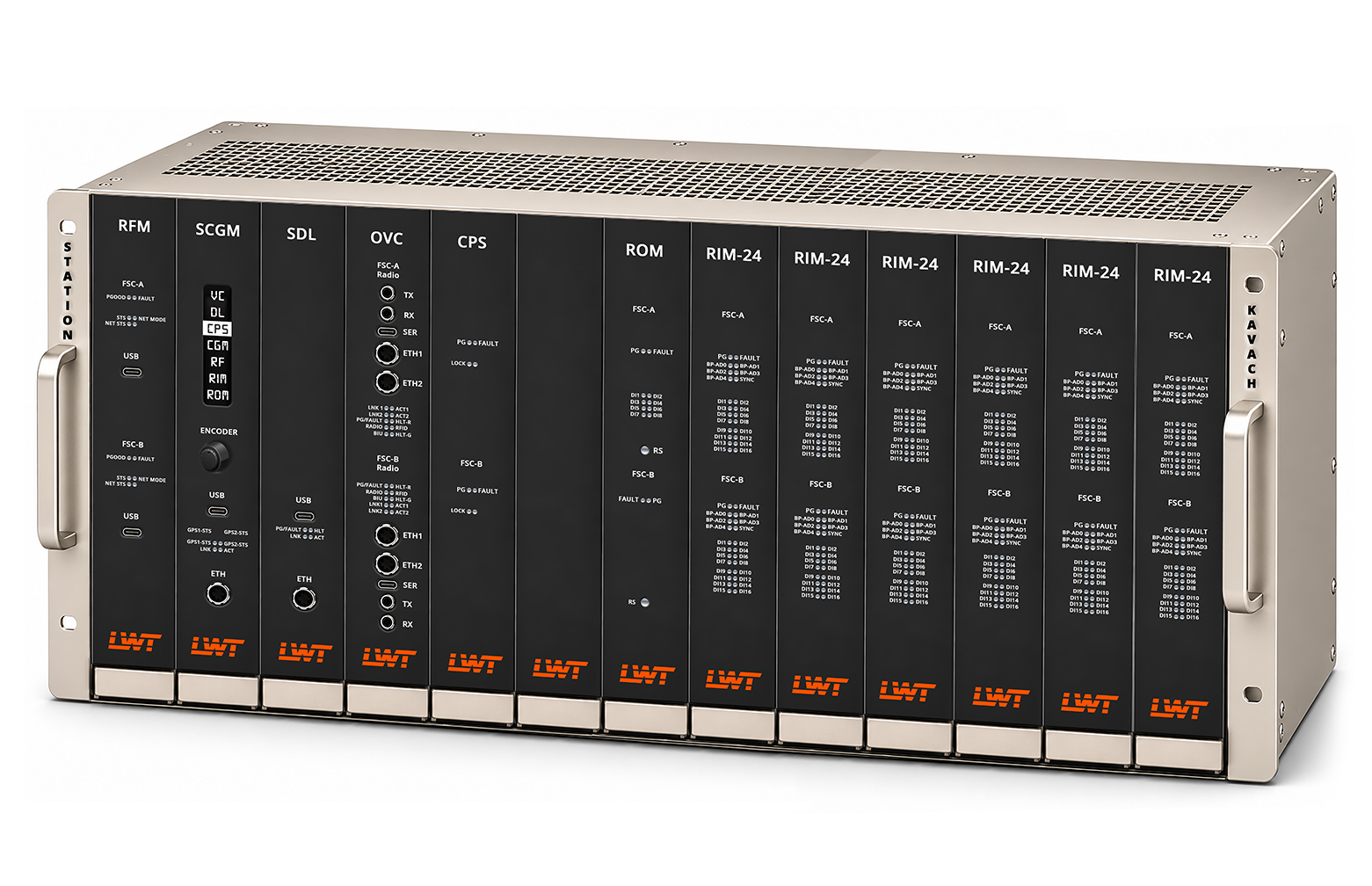

| Station Equipment (SE) | Interfaced with interlocking, manages signal aspects and train movement authorities | ||||||
| RFID Tags | Placed along tracks for precise train localization and positional feedback | ||||||
| Trackside Units (TSU) | Communicate real-time data to OBEs on speed limits, signal status, and location | ||||||
| Radio Communication Network | Enables Loco-to-Loco and Loco-to-Station safety communication | ||||||
| Centralized Safety Server (CSS) | Monitors all movements, logs events, and ensures redundancy and audit trails |
- Continuous Brake Enforcement
KAVACH automatically applies brakes if the driver fails to act in unsafe conditions (SPAD, overspeed). - Fail-Safe Design
All logic follows positive logic fail-safe principles, ensuring default to safety in any failure. - Time Synchronization
All units operate in coordinated time cycles (using GPS and IRNSS). - Cybersecurity Protection
All wireless and wired communication is encrypted and authenticated per SIL 4 protocol standards.
- All hardware and software components have been evaluated per CENELEC EN 50126 / 50128 / 50129
- Hazard Analysis and Risk Assessment (HARA) and Failure Modes and Effects Analysis (FMEA) completed
- Validated by independent safety assessors (ISA) such as RDSO and global agencies
Performance in Indian Railways Environment
KAVACH is battle-tested in Indian Railways, covering high-speed corridors, suburban networks, and freight routes. It has demonstrated reliability in:
- Extreme temperature zones (-10°C to +60°C)
- Dusty, high-humidity, and heavy rainfall zones
- Mixed traffic operation (passenger, freight, and suburban)
- Legacy and modern locomotives (WAP, WAG, WDP series)
- Loco-to-Loco Communication for dynamic braking in rear-end collision prevention
- Speed Profiling and Advisory for terrain-specific braking and acceleration
- Real-Time Event Logging for diagnostics, training, and post-incident analysis
- Self-Test and Health Monitoring for every subsystem with diagnostics at OCC and remote level
- Compatible with Electronic and Relay Interlocking systems
- Interfaces with existing and new Train Management Systems (TMS)
- Upgradeable to future CBTC and ETCS L2 overlays
- Reduces Human Error-Driven Collisions by 90%
- Costs 1/3rd of imported ATP systems
- Enables faster, safer, and higher-capacity train operations
- Supports Indian Railways’ target to eliminate all major collisions by 2030
- Aligned with National Rail Plan and Vision 2047
Lotus Wireless Technologies is one of the few Indian companies with full-stack capability to design, integrate, deploy, and support SIL 4-compliant signaling systems aligned with KAVACH and CENELEC standards.
- In-house SIL 4 hardware and software design capability
- ISO 26262 and CENELEC-compliant QA/QC processes
- Capability to build safety case documentation, HARA, FTA, and FMEA
- Localized manufacturing of ATP hardware components
- Certified team of Functional Safety Engineers and System Integrators
- Strategic partnerships with OEMs and Indian Railways zones
